Wireless Transmission Power Distribution Terminal Feeder Unit For Circuit Breaker

I'm Online Chat Now
Certification
China Beijing Tianyihongda Science & Technology Development Co., LTD certification
China Beijing Tianyihongda Science & Technology Development Co., LTD certification
Super friendly service, the Power Line Fault Indicator high quality as expected and very economy and environmental protection.

—— Bruce

This is the first time i do Underground Cable Fault Indicator business , after i received , it is work well. and now i want to order more.

—— Joseph

Wireless Transmission Power Distribution Terminal Feeder Unit For Circuit Breaker

Wireless Transmission Power Distribution Terminal Feeder Unit For Circuit Breaker
Wireless Transmission Power Distribution Terminal Feeder Unit For Circuit Breaker Wireless Transmission Power Distribution Terminal Feeder Unit For Circuit Breaker

Large Image :  Wireless Transmission Power Distribution Terminal Feeder Unit For Circuit Breaker Get Best Price

Product Details:

Place of Origin: Beijing,China
Brand Name: Tianyihongda
Certification: type test report
Model Number: TYHD-FTU-LBS

Payment & Shipping Terms:

Minimum Order Quantity: 1set(3pcs)
Price: Negotiation
Packaging Details: export standard package
Delivery Time: 1500sets within 1 week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500sets per week
Detailed Product Description
Operating Ambient Temperature: From -40℃ To +85℃ Relative Air Humidity: The Air Humidity Can Not Exceed 50% At The Maximum Temperature And Higher Air Humidity Is Allowed At Lower Temperature.
Operating Environment: with Measures To Defend Against Rain, Snow, Wind, Sand, Dust And Static Electricity. Power Frequency Withstand Voltage: 2k;Power Circuit To Ground
High Light:

feeder remote terminal unit

,

remote control terminal

The remote controller of this device adopts the coding mode of 1 to 1 (i.e. the code of transmitter and that of receiver are the same, which are set as a unique code before leaving the factory). The opening and closing can be operated only after unlocking. After finishing the operation, the device will enter into the safe mode with multiple protections including locked remote operation, so as to avoid misoperation or false operation. The effective distance of remote controller is not more than 30 meters. The detailed operation of the remote controller is as follows:

If the device is opened, the steps for closing the device are: press the “Unlock” button on the remote controller to unlock the device and then press the “Close” button on the remote controller to close the device.

If the device is close, the steps for opening the device are: press the “Unlock” button on the remote controller to unlock the device and then press the “Open” button on the remote controller to open the device.

Note:

After unlocking, the opening and closing operation can be carried out continuously. If no operation is carried out for a period (about 10 seconds), the device will be locked out. Remote opening or closing can be carried out only after unlocking the device again.

2. Please refer to the instruction at the back of the remote controller of the device for the valid time of the remote controller buttons.

acerun:'yes';font-family:;font-size:10.5000pt;mso-font-kerning:1.0000pt;" >Open” button on the remote controller to open the device                Table for Selection of Fixed Values for Phase-to-Phase Protection Current

Total load capacity within the user’s boundary (KVA) <1250 1250-2500 2500-4000 4000-5600 >5600
Fixed value (A) 120 240 360 480 600

For the system in which the neutral point is earthed by low resistance, it is recommended to choose 600A as the fixed value for phase-to-phase protection to prevent starting the phase-to-phase protection when there is an earthing fault. Fixed value for quick break is generally 3-7 times of over-current fixed value, which is subject to the actual line.

Note: This part is about the fixed values of over-current protection and earthing protection. Please skip this part if there is no fixed value for protection, e.g. pure voltage protection method.

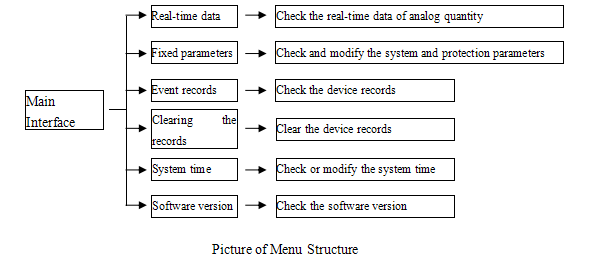

The device adopts Chinese menu to achieve human-machine interaction. The menu structure is as shown in the following picture:

Wireless Transmission Power Distribution Terminal Feeder Unit For Circuit Breaker 0
